Main Features

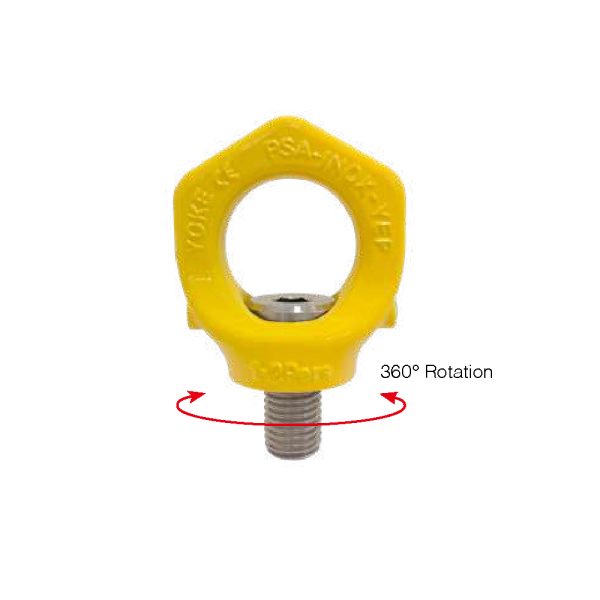

- Rotates through 360° adjustable in the direction of the load
- Manufactured from forged stainless steel
- Tested in accordance with EN795 or TS16415
- Load rated parts are 100% magnaflux crack detected
- Individual forged parts and cap screw are traceable to Test Certification
- Passed 22.2KN/person load testing
- Passed 100kg or 150 kg dynamic fall testing (EU standard is 100 kg)
- Meets all requirements of the German BG BAU (Employer’s insurance association of the building industry)
- Meets all requirements of DIN EN795, DIN EN50308, OSHA1926.502
- Acc. to DIN EN 365 including statement for the number of load bearing persons is 1-2 persons
- YOKE yellow powder coating for high visibility
- Suitable for permanently outdoor application
- PSA-INOX Lifting point to be as an anchor point for personal protective equipment
