Mini Lever Hoists

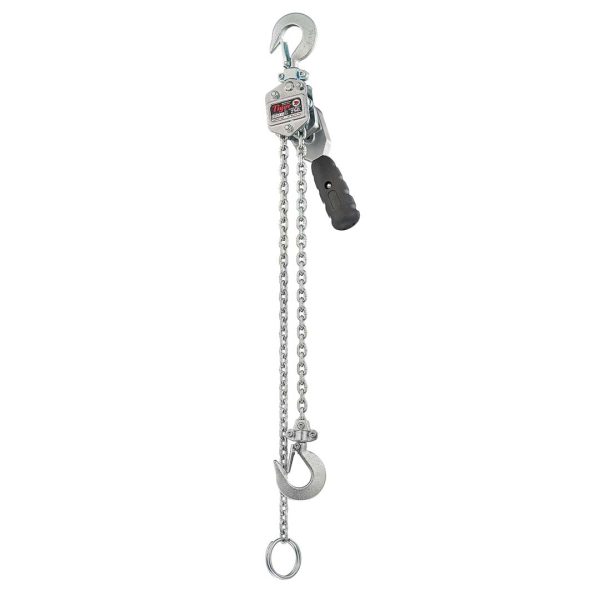

Tiger 250kg Lever Hoist (LH-0025) & 500kg Lever Hoist (LH-0050)
Rugged steel body construction yet lightweight and portable.
Product no: LH-0025/LH-0050
Main Features
- 360-degree handle rotation
- Short stroke and low lever pulling effort
- Easy single-hand “freewheeling” operation
- Drop forged & heat-treated alloy hooks
- Safe reliable twin pawl mechanical brake
- Proof tested to 1.5 times rated capacity
- 5m height of lift as standard but can be chained to exact requirements

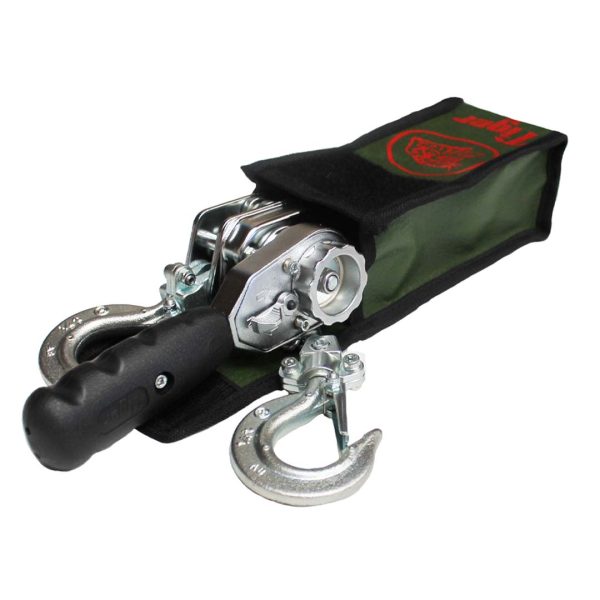

- Supplied with useful belt bags
Data Tables
| Product Code | Capacity (tonne) | Effort (kg) | Dimensions | Load Chain Diameter (mm) | Load Chain No. of Falls | Standard HOL (m) | Mass Kg @ Std HOL | Mass for Extra Metre HOL (kg) | Technical Drawing | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F1 | F2 | |||||||||
| LH-0025 | 0.25 | 16 | 89 | 168 | 265 | 113 | 70 | 22 | 31 | 4.0 | 1 | 1.5 | 2.9 | 0.3 |  |
| LH-0050 | 0.5 | 30 | 89 | 168 | 280 | 113 | 70 | 24 | 38 | 4.0 | 1 | 1.5 | 3.0 | 0.3 |  |
Hook Data
| Product Code | Capacity (Tonne) | Collar Measurements (mm) | Hook Thickness at Point Shown In Diagram (mm) | Hook Throat Opening (mm) | “EZ Check” Measurement (mm) | Technical Drawing | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||
| LH-0025 | 0.25 | 5 | 8 | 18 | 12 | 26 | 43 |  |
| LH-0050 | 0.5 | 8 | 13.5 | 19 | 15 | 29 | 47 | |
