BCU Universal Beam Clamp

Globally tried and tested

The Tiger Universal Beam Clamp Model No BCU has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable. This clamp is highly flexible in application and can be used for lifting, pulling or as a semi-permanent anchor point.

It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations.

We hold complete technical files for our products to provide full back-up and reassurance on our products’ performance and to ensure that advice for our equipment is readily available.

10t deep flange option available



Warning: Do not exceed working load limits or use this equipment for lifting flat plate sections

Product no: BCU
Download Product PDF

Main Features

  • Full rated capacity at any lifting angle
  • 2.0t, 3.0t, 5.0t and 10.0t capacities available
  • *NEW* 10t deep flange option (to 40mm)
  • Quick and versatile rigging point for hoisting equipment
  • Low headroom design
  • Highly flexible – for lifting, pulling or as a semi-permanent anchor point
  • Designed for both vertical and side loading applications – can be loaded at any angle
  • Suitable for pulling and lifting at angles across the beam
  • Designed to accommodate a wide range of beam widths
  • Multidirectional adjusting screw spindle ensures a high clamping force to beam web
  • Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Factor of safety: 5:1 for straight pulling and lifting, 4:1 at all other angles
  • Complies with ASME B30.20 and EN13155 :2003+A2 :2009

Details

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

We hold complete technical files for our products to provide full back-up and reassurance on our products’ performance and to ensure that advice for our equipment is readily available.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.

Data Tables

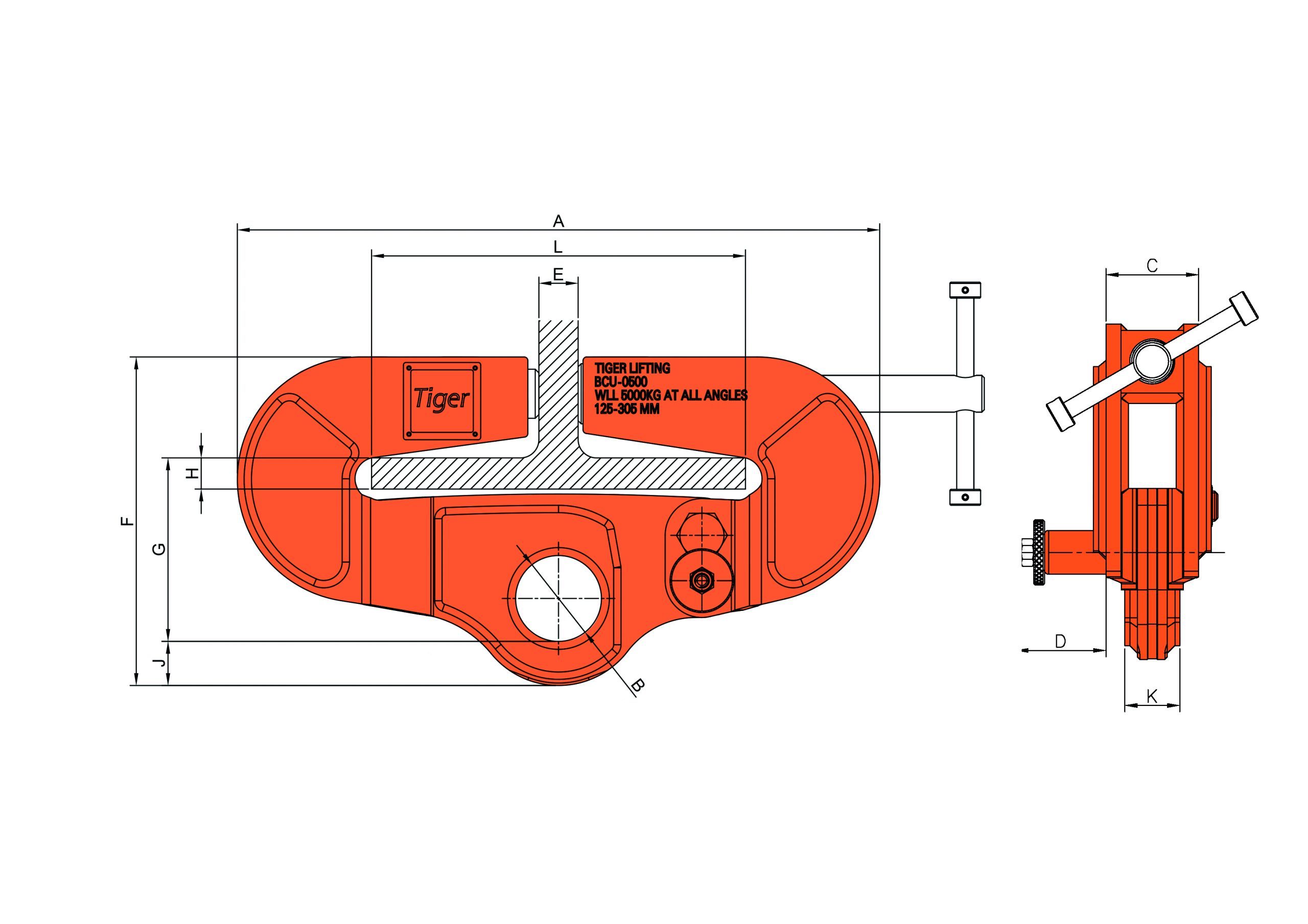

Product Code Capacity (tonne) Dimensions (mm) Net Weight (kg) Technical Drawing
A B C D E F G H J K L
BCU-0200 2.0 337 58 60 68 32 203 88.5 25.5 22.5 20 76-190 10.0
BCU-0300 3.0 387 60 70 63 32 235 100 25.5 28 20 125-204 15.5
BCU-0500 5.0 524 70 74 72 32 268 120 25.5 36 44 125-305 27.0
BCU-1000 10.0 524 70 75.5 82 32 278 120 25.5 38 51.5 125-305 31.0
BCU-100D 10.0 539 76 75.5 82 47 286 120 40 38 51.5 125-305 33.0
