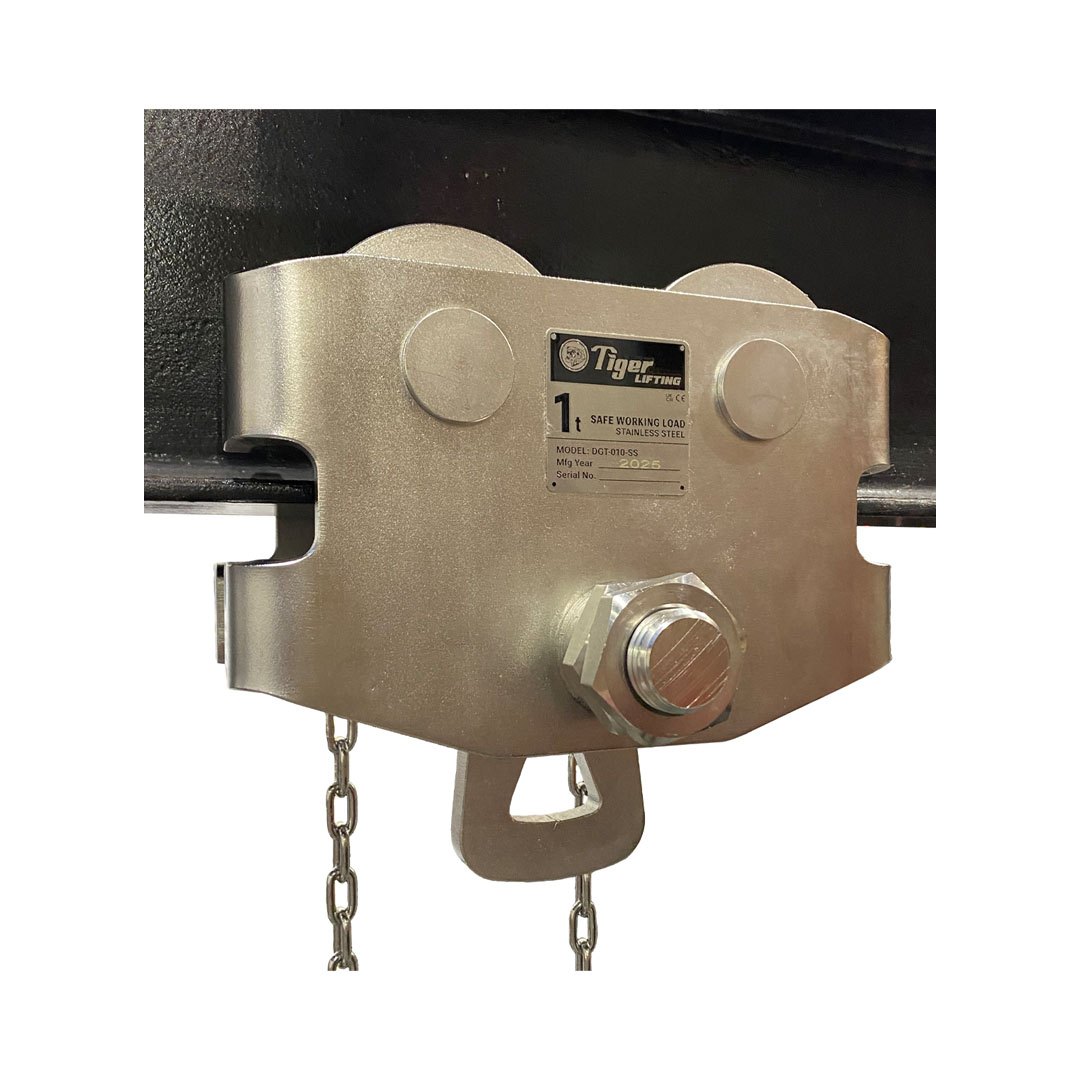

Stainless Steel NXTP NXTG Trolley

Product no: NXTP/NXTG
Download Product PDF

Main Features

  • Suitable for environments including the chemical, medicinal, and food
  • The wheels run on sealed bearings for smoother rolling with less effort and maintenance
  • Extended beam width available
  • Optional beam locking device
  • The anti-drop plates design ensures extra safety, and also prevents damage to the wheels when contacting end rail stoppers
  • Twin bar or single bar trolleys available
  • Corrosion or Spark Resistant versions available
  • The 5:1 factor of safety allows for use with manual or powered hoists

Data Tables

Plain Trolley NXTP

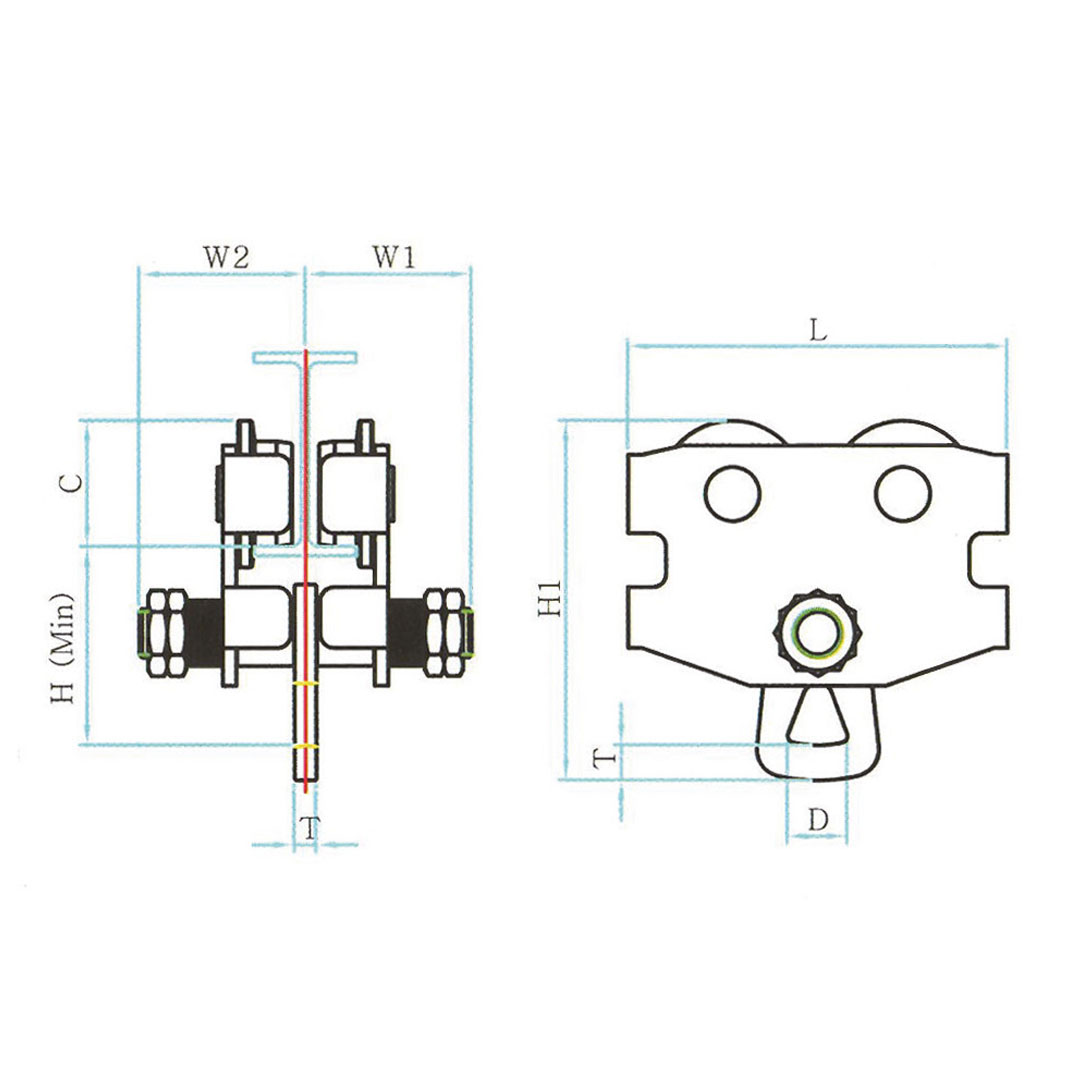

Product Code Capacity (tonne) Dimensions Min. Curve Radius (mm) Beam Flange Width (mm) Net Weight (kg) Technical Drawing
H (min) H1 L W1 W2 C D T T1
NXTP-005-SS 0.5 120.5 227.0 250.0 115.0 115.0 88.5 30.0 18.0 10.0 1200 64-125 13.5
NXTP-010-SS 1.0 147.0 266.5 280.0 122.5 122.5 93.5 44.0 26.0 16.0 1300 74-125 20.0
NXTP-020-SS 2.0 176.0 305.0 310.0 141.0 109.0 103.0 45.0 26.0 19.0 1500 100-150 30.0
NXTP-030-SS 3.0 177.0 323.0 350.0 158.5 111.5 120.0 45.0 26.0 19.0 1600 100-150 38.0

Geared Trolley NXTG

Product Code Capacity (tonne) Dimensions Standard Chain Length (m) Min. Curve Radius (mm) Beam Flange Width (mm) Net Weight (kg) Technical Drawing
H (min) H1 L W1 W2 C D T T1
NXTG-005-SS 0.5 120.5 227.0 250.0 115.0 152.0 88.5 30.0 18.0 10.0 2.5 1200 164-125 10.0
NXTG-010-SS 1.0 147.0 286.2 280.0 122.5 159.0 113.2 44.0 26.0 16.0 2.5 1300 74-125 16.0
NXTG-020-SS 2.0 176.0 305.0 310.0 141.0 164.5 103.0 45.0 26.0 19.0 2.5 1500 100-150 19.0
NXTG-030-SS 3.0 177.0 327.0 350.0 158.5 165.5 124.0 45.0 26.0 19.0 3.0 1600 100-150 19.0
NX-TG-050-SS 5.0 241.0 407.5 390.0 190.5 194.5 130.5 80.0 36.0 25.0 3.0 2100 125-175 25.0
