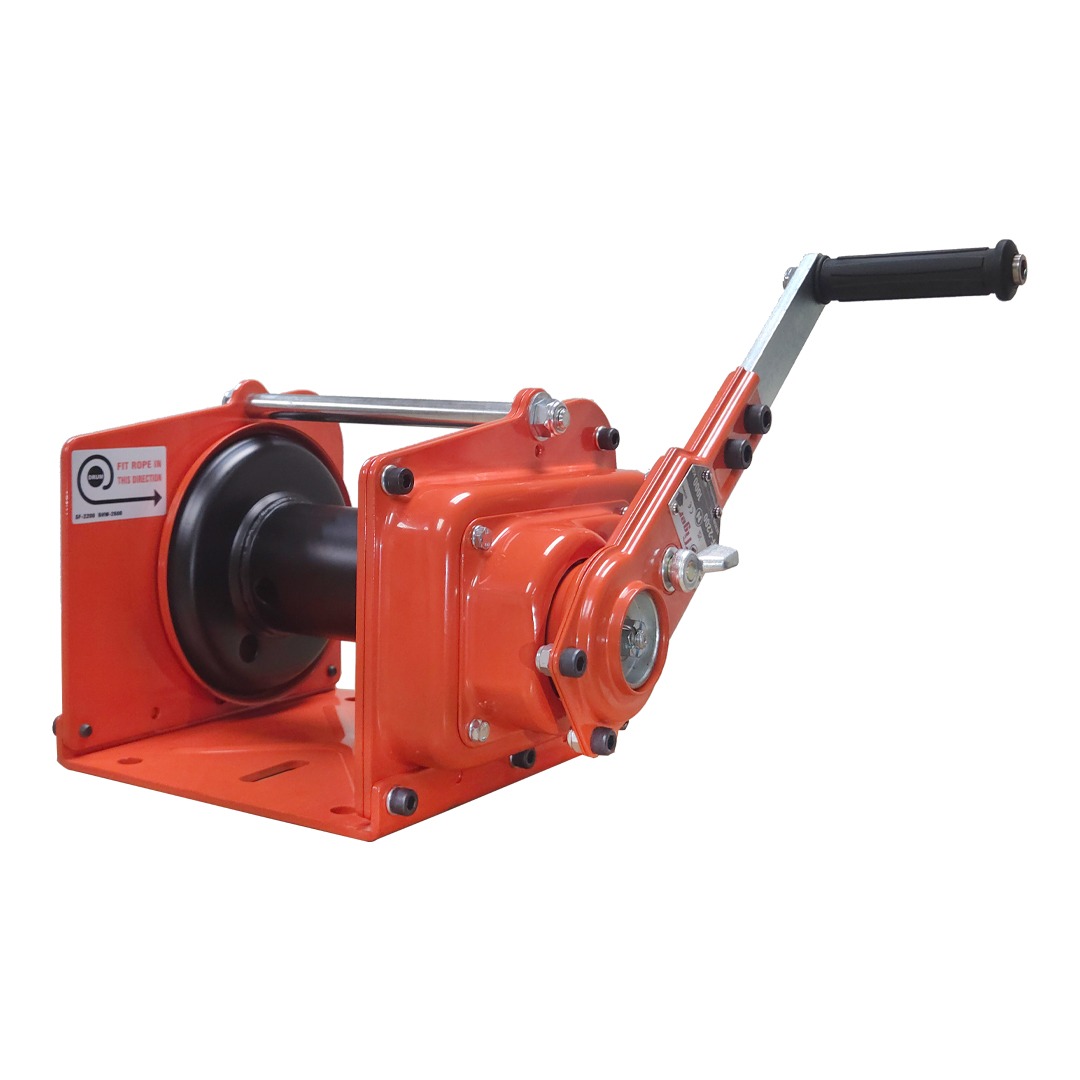

SF-2200 Industrial Ratchet Handle Winch

Product no: SF-2200
Download Product PDF

Main Features

  • 2200lb/1000kg lifting & 4400lb/2000kg pulling capacity
  • Gears and brake are fully covered to prevent dust, dirt and rain contamination
  • Ratchet handle permits reciprocating handle movement in both directions for lifting and lowering loads
  • Very low operator effort is required for easy operation
  • Positive load-actuated brake can hold the load in any position
  • Ratchet handle accommodates installation in cramped locations
  • Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)

Details

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.

Data Tables

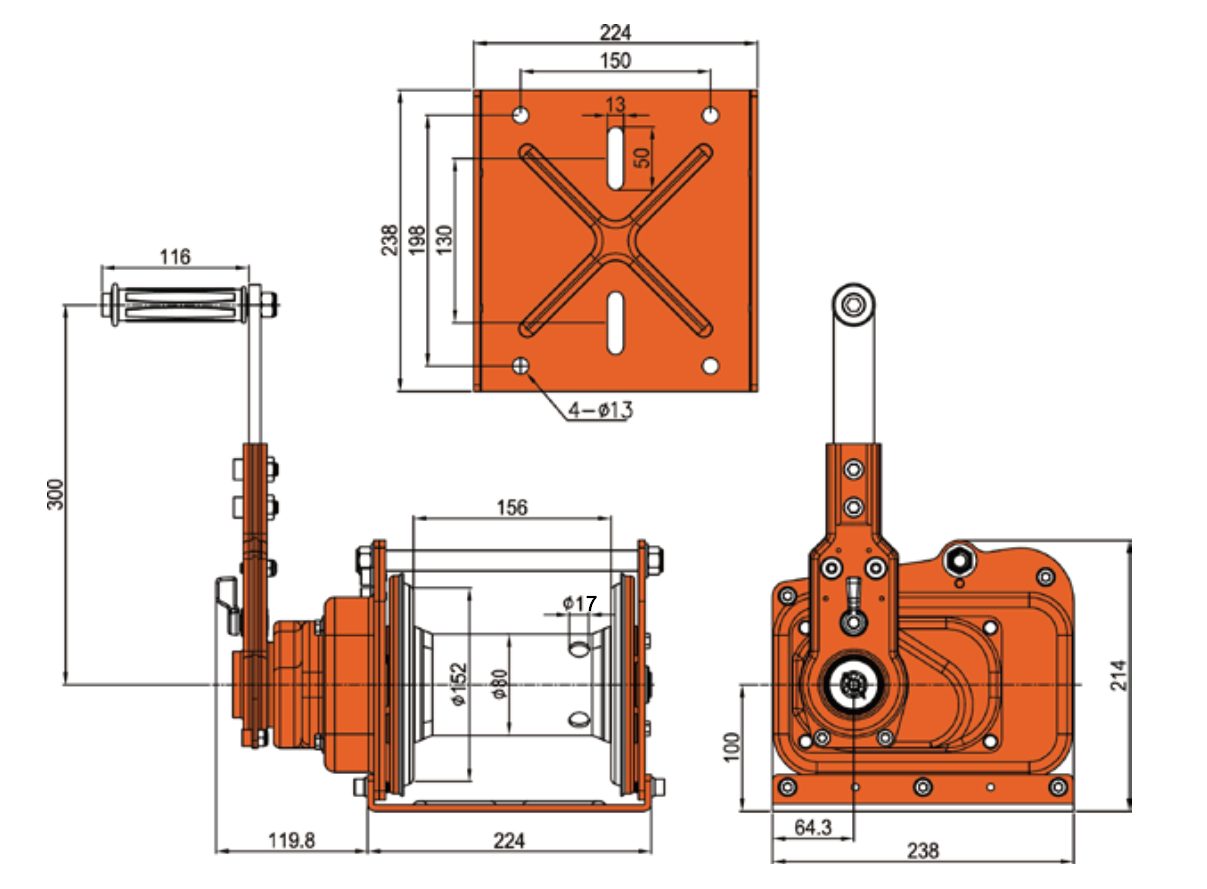

Product Code Pulling Capacity (lbs/kg) Lifting Capacity (First Layer) Lifting Capacity (Last Layer) Hand Force Required (kg) Gear Ratio Hub Diameter (mm) Handle Length (mm) Unit Weight (with handle) (kg) Unit Weight (with loop) Cable Diameter (mm/inch) Cable Storage Cap. (m) Technical Drawing
SF-2200 4400/2000 2200/1000 10 22.2:1 Ø80 300 17.5 Ø8.0/Ø5/Ø16 32
