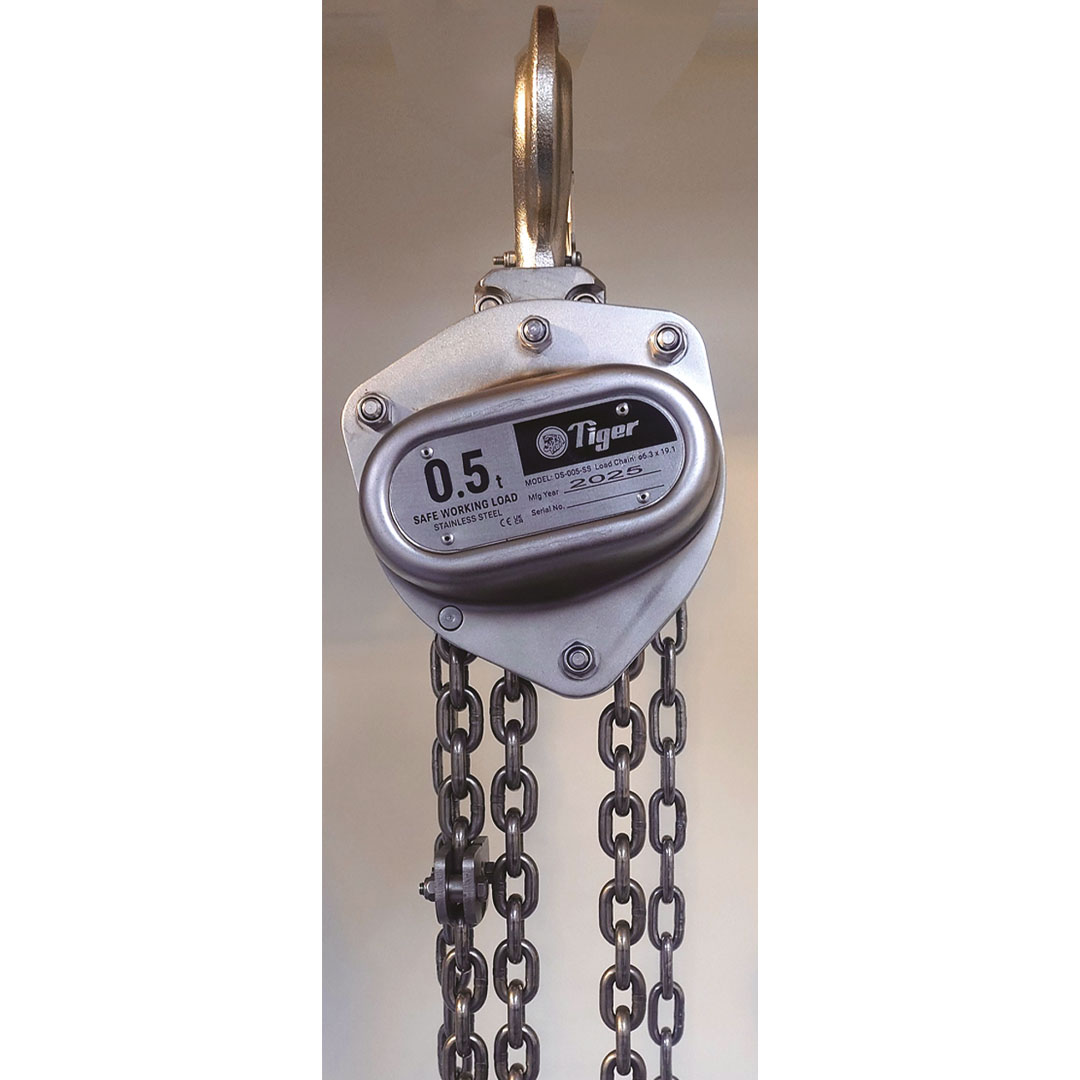

NX Stainless Steel Chain Block

Product no: NX
Download Product PDF

Main Features

  • Suitable for environments including the chemical, medicinal, and food
  • industries where corrosion should be avoided
  • This product reduces dust, making it suitable for a clean room environment
  • Double brake pawl
  • Surface treatment – electrolytic polishing
  • Chain length is adjustable
  • Load chain: SUS316L
  • Hand chain: SUS316
  • Covers: SUS304L
  • Pin and Bush: SUS420J2

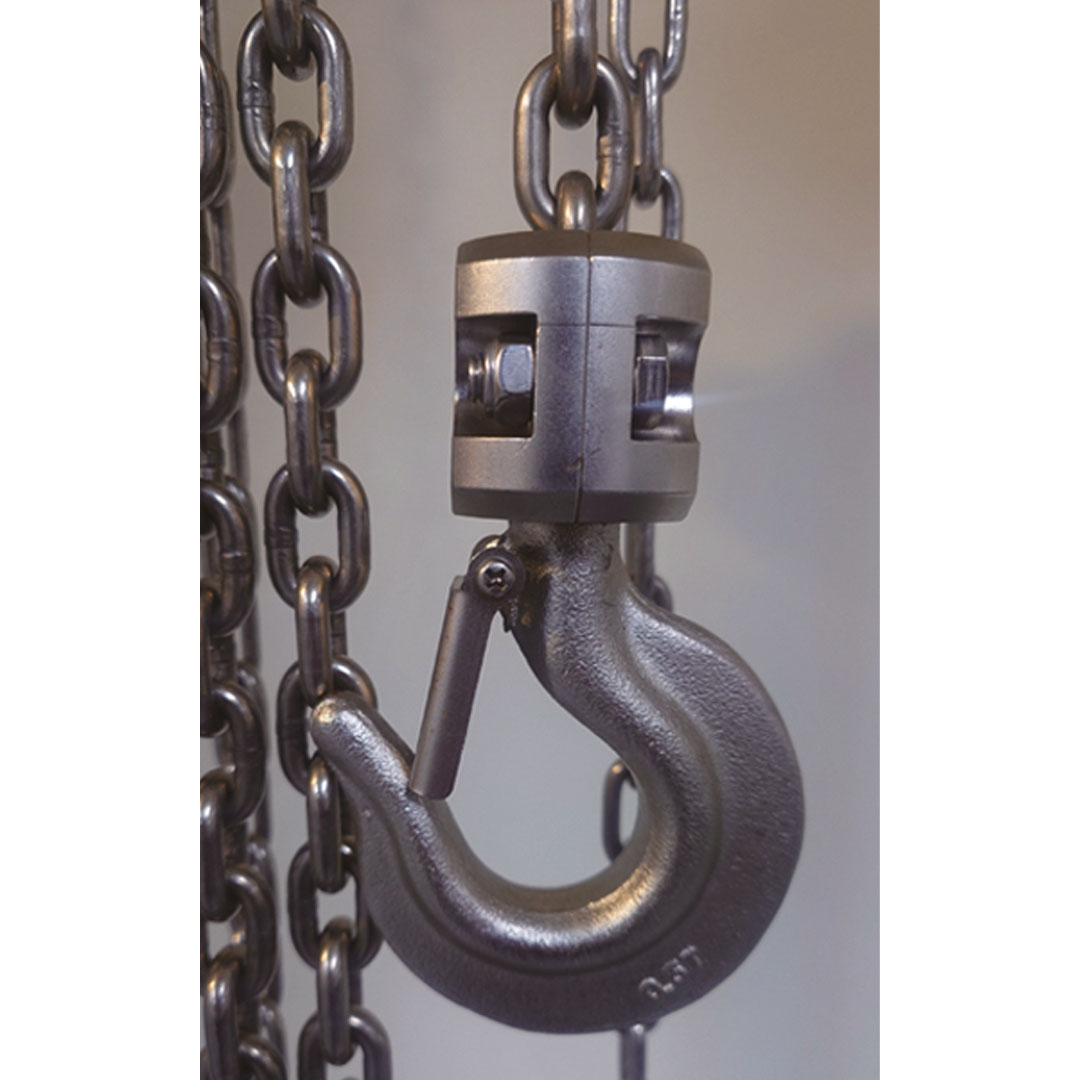

  • Hook part and Sheave, Plates: SUS304
  • Name Plate: SUS316

Data Tables

Stainless Steel Chain Block NX

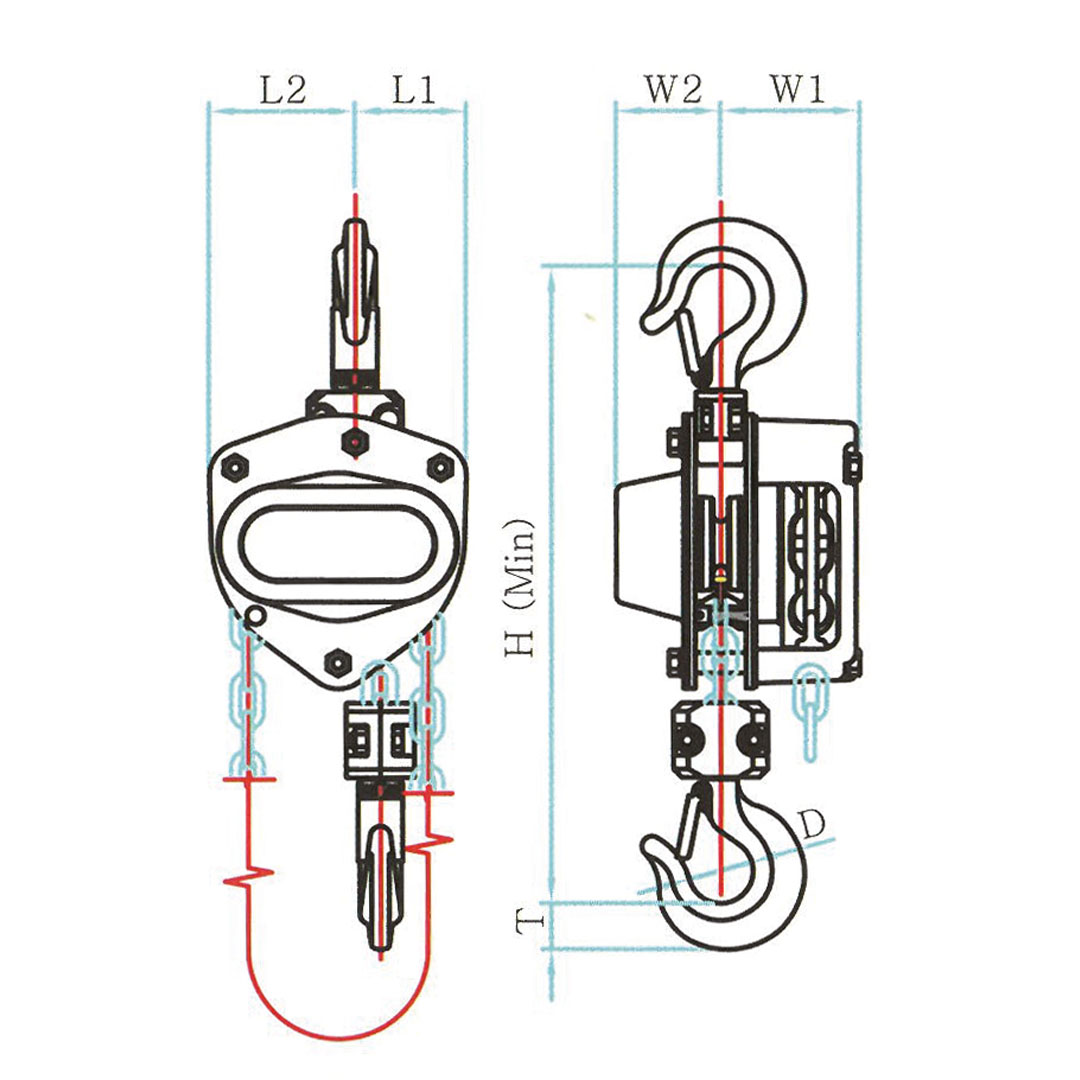

Product Code Capacity (tonne) Effort (kg) Dimensions Std. Chain Length Load Chain Spec No of Falls Std. Net Weight (kg) Technical drawing
H (min) L1 L2 W1 W2 D T Load Chain Hand Chain
NX-005-SS 0.5 18.0 355.0 65.0 85.0 84.5 62.0 ⌀38.0 27.0 2.5 2.0 ⌀6.3 1 12.5
NX-010-SS 1.0 24.0 425.0 82.5 110.5 91.8 72.8 ⌀46.0 32.0 2.5 2.0 ⌀7.9 1 20.5
NX-020-SS 2.0 25.0 586.0 64.2 173.0 91.8 72.8 ⌀64.0 51.0 3.0 2.5 ⌀7.9 2 38.0
NX-030-SS 3.0 30.0 655.0 75.1 201.0 95.5 80.5 ⌀64.0 51.0 3.0 2.5 ⌀10.0 2 50.0
NX-050-SS 5.0 40.0 795.0 80.0 217.5 107.0 89.0 ⌀86.0 70.0 3.0 2.5 ⌀10.0 2 74.0
