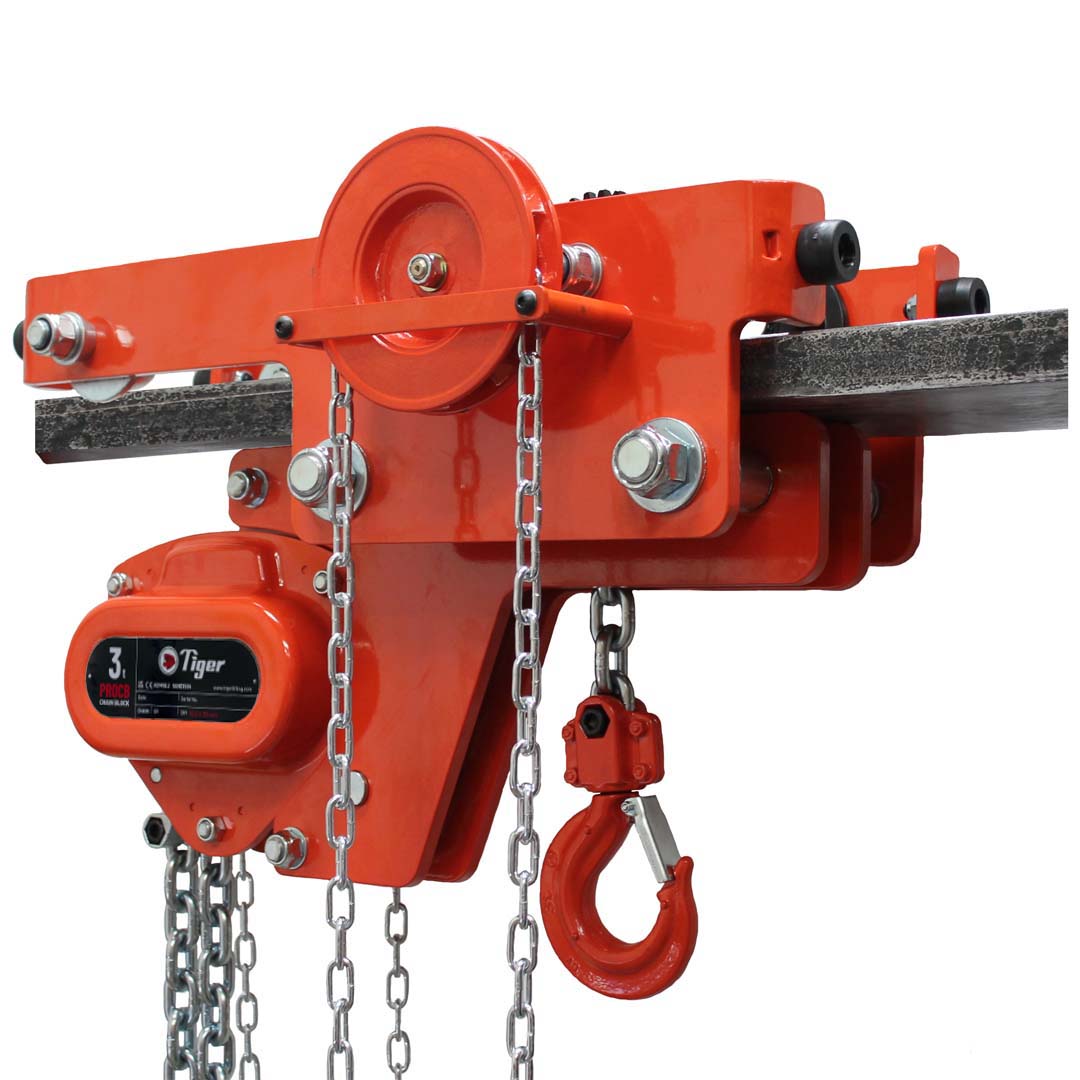

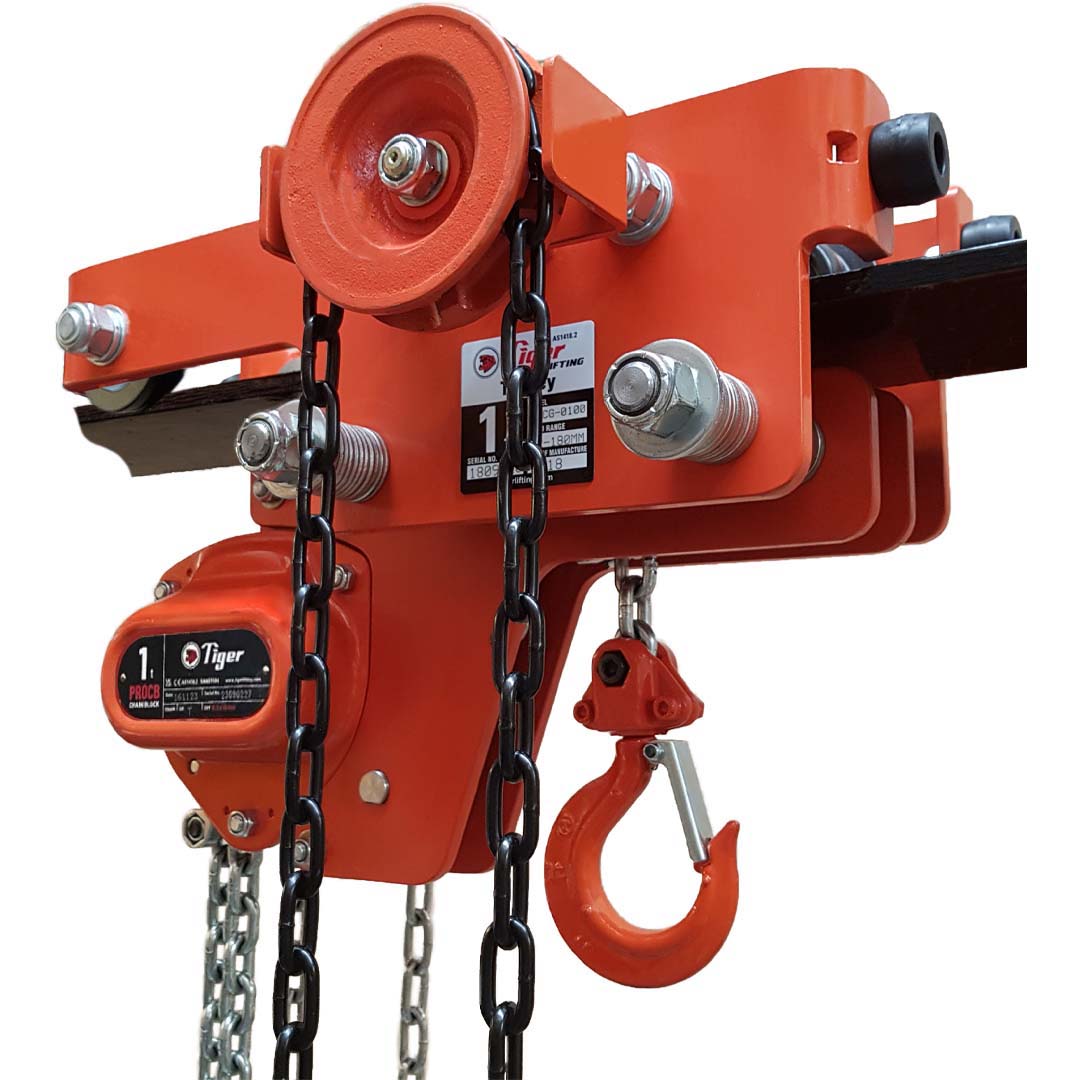

Low Headroom Combined Chain Block and Trolley

Product no: LHCG
Download Product PDF

Main Features

  • Very low headroom
  • Range from 1.0t to 10.0t
  • Ideal for locations where headroom is limited
  • Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Can be chained to any height of lift to meet your exact requirements
  • Chain carrier available
  • Corrosion or spark resistant versions available
  • Available with load limiter
  • Available with beam locking device
  • Powder coated universal wheels suit both tapered and flat flange beams
  • These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.

Details

Certification

Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

Standard Product

With Locking Device – outside of curve

With Locking Device – inside of curve

Data Tables

Low Headroom Combined Chain Block and Trolley

Product Code Capacity (tonne) D – Track width Minimum Curve Radius (m) Dimensions (mm) Load Chain Net Weight (kg)
@ std HOL
range 1/range 2		 Technical drawing
Range 1 (mm) Range 2 (mm) A B C E F G H J L Diameter (mm) No. of falls
LHCG-0100 1.0 62-180 62-310 2.2 458 207 138 149 24 230 210 70.5 82 ⌀6.3 1 36.5/38.1
LHCG-0200 2.0 88-180 88-310 3.2 576 207 141 179 24 299 260 79.5 94 ⌀8.0 1 62.6/64.4
LHCG-0300 3.0 88-180 88-310 4.0 698 209 153 221 32 341 305 96.5 126 ⌀10.0 1 95.2/97.7
LHCG-0600 6.0 106-194 106-310 6.0 791 216 164 274 32 344 425 117 137 ⌀10.0 2 132.1/133.7
LHCG-1000 10.0 106-320 – 9.0 873 283 243 377 45 364 550 118 151 ⌀10.0 3 203.0

Low Headroom Combined Chain Block and Trolley with optional locking device

Product Code Capacity (tonne) D – Track width Minimum Curve Radius (m) locking at the outside of I beam Minimum Curve Radius (m) locking at the outside of I beam Dimensions (mm) Net Weight (kg) @ std HOL
range 1/range 2		 Technical drawing
Range 1 (mm) Range 2 (mm) A B C E F G H J L
LHCG-0100-K 1.0 62-180 62-310 2.2 3.0 572 207 138 149 24 230 210 70.5 82 44.2/45.8
LHCG-0200-K 2.0 88-180 88-310 3.2 4.5 678 207 141 179 24 299 260 79.5 94 70.9/72.7
LHCG-0300-K 3.0 88-180 88-310 4.0 5.5 814 209 153 221 32 341 305 96.5 126 105.4/107.9
LHCG-0600-K 6.0 106-194 106-310 6.0 8.0 924 216 164 274 32 344 425 117 137 143.4/145.0
LHCG-1000-K 10.0 106-320 – 9.0 14.0 1013 286 243 377 45 364 550 118 151 216.2
