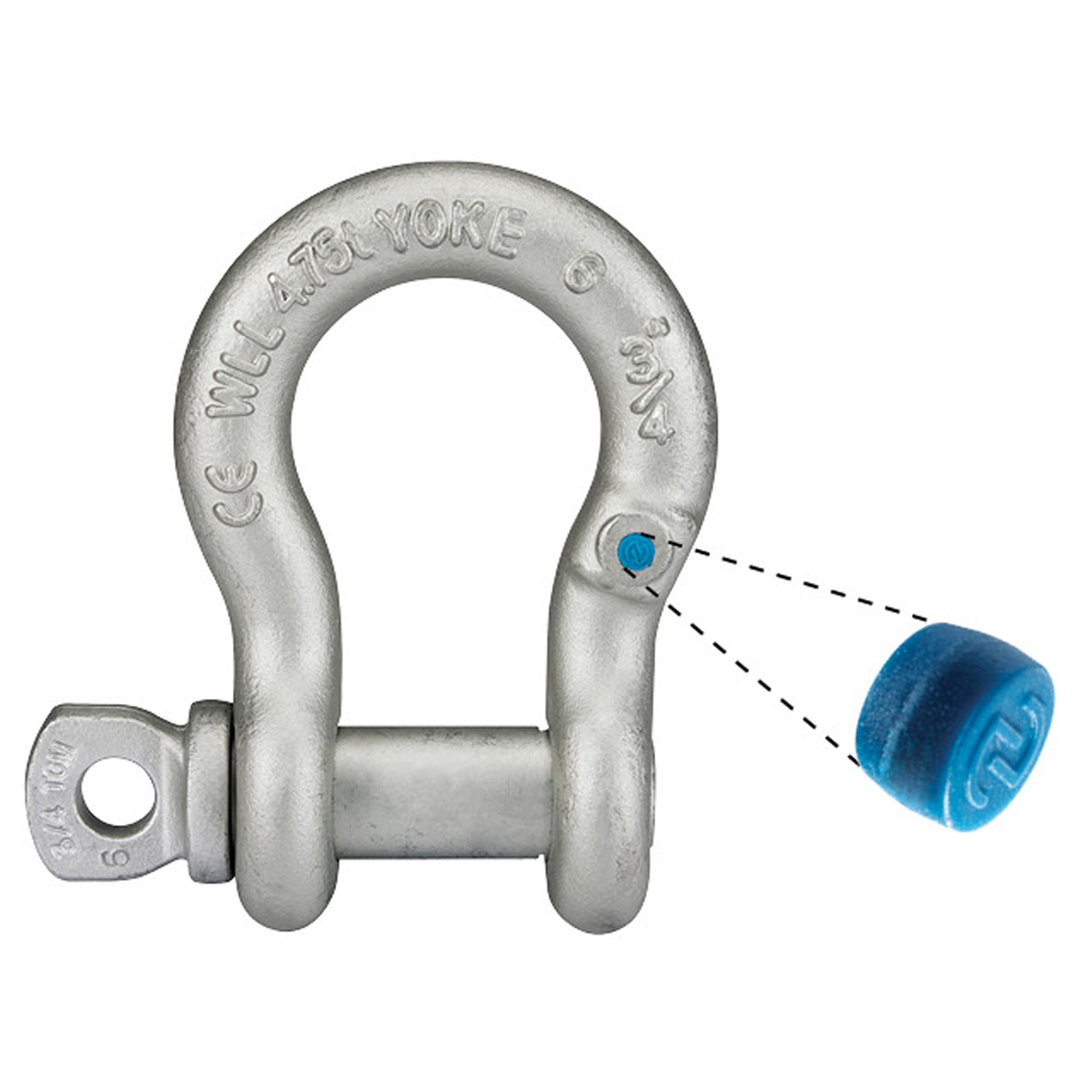

8-837 Forged Anchor Shackle

Product no: 8-837
Download Product PDF

Main Features

  • Shackles are Type Approved by DNV & ABS
  • Forged carbon steel with alloy pin
  • Size and the working load limit permanently shown on each shackle
  • All shackles have a batch code which links to test certificate and quality traceability
  • 100% magnaflux crack detection during manufacturing
  • 20,000 cycle fatigue rated to 1.5 times working load limit
  • Galvanized finish

Data Tables

Product Code Capacity (tonne) Nominal Size
(mm)		 Dimensions (mm) ­­Net Weight (kg) Technical Drawing
A B D E G H W
8-837-13 2.00 13 47 13 16 33 30 85 20 0.3
8-837-16 3.25 16 61 16 19 43 38 106 27 0.6
8-837-19 4.75 19 72 19 22 50 46 126 33 1.0
8-837-26 8.50 26 96 26 28 69 61 166 44 2.3
