8-281 PSA – YEP

Product no: 8-281
Download Product PDF

Main Features

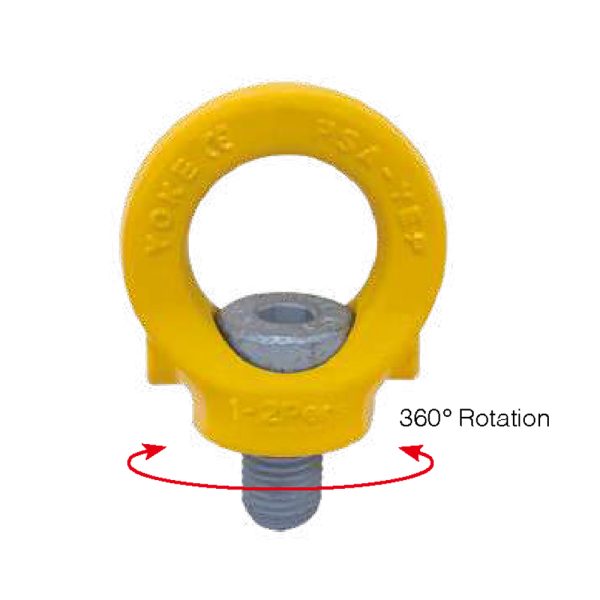

  • Rotates through 360° adjustable in the direction of the load
  • Manufactured from forged alloy steel, quenched and tempered
  • Tested in accordance with EN795 or TS16415
  • Certified by PSA of DGUV
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts and cap screw are traceable to Test Certification
  • Passed 22.2 KN/person Load testing
  • Passed 100kg or 150 kg dynamic fall testing (EU standard is 100 kg)
  • Meets all requirements of the German BG BAU (Employer’s insurance association of the building industry)
  • Meets all requirements of DIN EN795, DIN EN50308, OSHA1926.502.
  • Acc. to DIN EN 365 including statement for the number of load bearing persons is 1-2 persons
  • YOKE yellow powder coating for high visibility
  • PSA – Lifting point to be as an anchor point for personal protective equipment

Data Tables

Technical Data – Metric

Product Code Capacity/WLL
(tonnes)		 Thread Version
M		 Dimensions (mm) Torque in
(Nm)		 Net Weight (kg) Technical Drawing
A B C D E F G H J S W
8-281-007 1 Pers M12x1.75 45 30 10 11 18 33 29 5 45 8 52 10 0.2
8-281-015 1-2 Pers M16x2.0 52 35 14 13 24 35 33 8 52 10 61 30 0.3
8-281-023 1-2 Pers M20x2.5 60 40 16 15 30 44 37 7 60 12 70 70 0.6

Technical Data – Imperial

Product Code Capacity/WLL
(tonnes)		 Thread Version
M		 Dimensions (inch) Torque in
(ft. lbs)		 Net Weight (lbs) Technical Drawing
A B C D E F G H J S W
8-281-007 1 Pers M12x1.75 1.8 1.2 0.4 0.4 0.7 1.3 1.1 0.2 1.8 0.3 2.0 7.4 0.4
8-281-015 1-2 Pers M16x2.0 2.0 1.4 0.6 0.5 0.9 1.4 1.3 0.3 2.0 0.4 2.4 22.1 0.7
8-281-023 1-2 Pers M20x2.5 2.4 1.6 0.6 0.6 1.2 1.7 1.5 0.3 2.4 0.5 2.8 51.7 1.3
